The enterprise-grade Wi-Fi 7 wall plate access point features three radios with dual spatial streams, support for the 6 GHz band, and a combination of one 10GbE and three 1GbE ports, including PoE output capability. It enables continuous background scanning across all wireless bands while providing high-performance connectivity on 2.4 GHz, 5 GHz, and 6 GHz networks. Integrated BLE and ZigBee support also enables location-based and IoT applications.

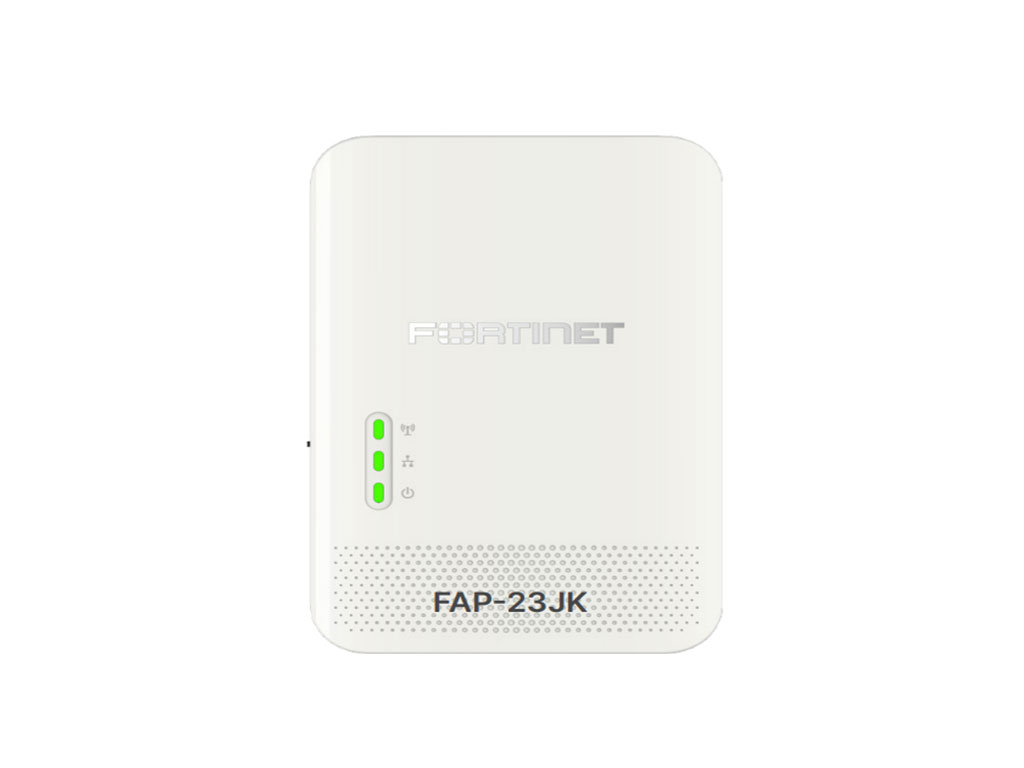

Wall Plate Access Point
Wi-Fi 7 Tri-Band (2.4 GHz / 5 GHz / 6 GHz)
3 Radios with 2×2 + 2×2 + 2×2 MIMO (2 Spatial Streams per Radio)
Internal Antennas
1 × 10G Ethernet Port
3 × 10/100/1000 RJ45 Ports
1 × 802.3af PoE PSE Port
2 × Non-PoE Ports
Bluetooth (BT) / Bluetooth Low Energy (BLE) Support
1 × RJ45 Serial Port
Wall Plate Mounting Kit Included
Power Options: 802.3bt PoE Injector (GPI-145, 10 Gbps) or AC Adapter (SP-FAP23J-PA)
